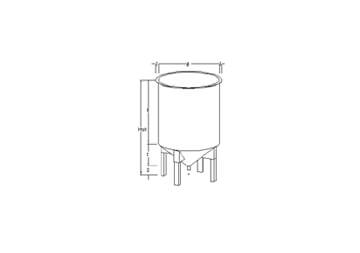

0505 CYLINDRICAL TANKS WITH CONICAL BOTTOM AND SUPPORTS

0505
Technical Table
Code:05.05 CYLINDRICAL TANKS WITH CONICAL BOTTOM AND SUPPORTS
MATERIALS
used and standard features of construction can be found in Chapter 05.00.00

COLOURING:
grey RAL 7004 standard aquaculture

CAPACITY:
the tanks volume depends on geometrical dimensions

DIMENSIONS:
the dimensions above indicated are nominal and not binding ones

WELL WITH A PLACE FOR GRID:
excluded

TYPE OF DISCHARGE:
total outlet FF PVC D 32 hose up to Ø=600


D 50 from Ø=600-800


D 63 from Ø=1000-1500

SUPPORTS:
supplied with standard materials and heights

STANDARD SUPPLIED ACCESSORIES:
n. 3 supports 50x50x5 from 600 to 1000;


n. 4 supports 80x50x5 from 1200 to 1500,


stainless steel rivets, washers;

OPZIONI:
COLOURING DIFFERENT FROM STANDARD

OPZIONI:
SUPPORTS DIFFERENT FROM STANDARD


WELL ART. 05.23.01


GRID ART. 05.23.02


ASSEMBLED PVC CONNECTIONS ART. 05.23.03


TILTING WASTE PIPE SYSTEM ART. 05.23.04


TELESCOPIC DISCHARGE AND LEVEL SYSTEM ART. 05.23.05


FULL LEVEL DISCHARGE ART. 05.23.06

CYLINDER SURFACE FILTERS ART. 05.23.07
CENTRAL COLUMN FILTERS ART. 05.23.08
CENTRAL COLUMN FILTERS ART. 05.23.08
AIR DISTRIBUTION SYSTEM ART. 05.23.18
OXYGEN DISTRIBUTION SYSTEM ART. 05.23.19
INSTALLATION ART. 05.30
