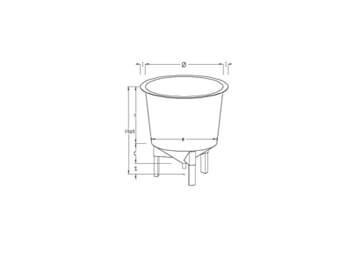

05.06 CONESHAPED TANKS WITH CONICAL BOTTOM AND SUPPORTS

0506
Technical Table
Code : 05.06 CONESHAPED TANKS WITH CONICAL BOTTOM AND SUPPORTS
MATERIALS
used and standard features of construction can be found in Chapter 05.00.00

COLOURING:
grey RAL 7004 standard aquaculture

CAPACITY:
the tanks volume depends on geometrical dimensions

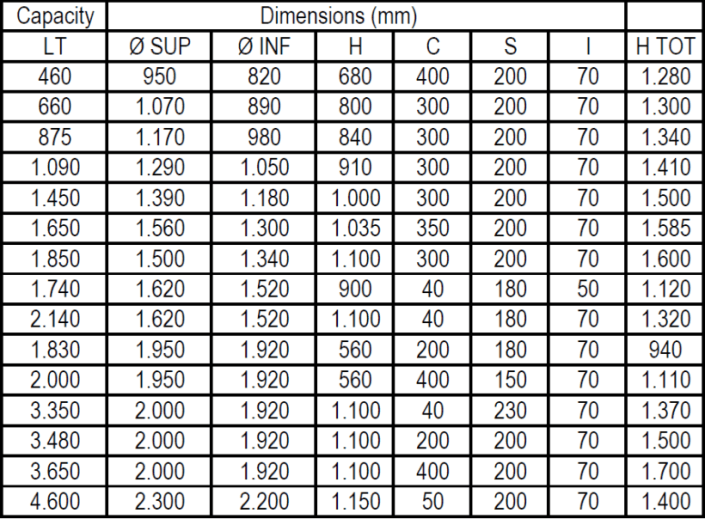

DIMENSIONS:
the dimensions above indicated are nominal and not binding ones

WELL:
excluded

TYPE OF DISCHARGE:
total outlet FF PVC D 50 hose from Ø sup.=950 to 1290

D 63 hose from Ø sup=1290 to Ø=2220

SUPPORTS:
supplied with standard materials and heights

STANDARD SUPPLIED ACCESSORIES:
n. 3 supports PRFV 50x50x5 from Ø=950 to Ø=1290,stainless steel rivets, washers


n. 4 supports PRFV 50X80X5 from Ø=1390 to Ø=1560,stainless steel rivets, washers


n. 2 incorporated supports in FRP Ø=2200 H=1100

OPTIONS::
COLOURING DIFFERENT FROM STANDARD


SUPPORTS DIFFERENT FROM STANDARD


WELL ART. 05.23.01


GRID ART. 05.23.02


ASSEMBLED PVC CONNECTIONS ART. 05.23.03


TILTING WASTE PIPE SYSTEM ART. 05.23.04


TELESCOPIC DISCHARGE AND LEVEL SYSTEM ART. 05.23.05


FULL LEVEL DISCHARGE ART. 05.23.06


CYLINDER SURFACE FILTERS ART. 05.23.07


CENTRAL COLUMN FILTERS ART. 05.23.08


AIR DISTRIBUTION SYSTEM ART. 05.23.18


OXYGEN DISTRIBUTION SYSTEM ART. 05.23.19


INSTALLATION ART. 05.30
