05.07 CIRCULAR BASE TANKS WITH CONICAL OR FLAT BOTTOM MADE OF TWO ELEMENTS

0507
Technical Table
Code :05.07 CIRCULAR BASE TANKS WITH CONICAL OR FLAT BOTTOM MADE OF TWO ELEMENTS

STANDARD SOLUTION:
tank on shaped bed of sand or r.c. platform. Installation and sealing by the client;
ALTERNATIVE 1
Ø=3000, Ø=3500 on r.c. supports made by the client as per our instructions. Installation and sealing by the client;
ALTERNATIVE 2
Ø=3000, Ø=3500 on r.c. supports supplied by us. Installation and sealing by the client;

MATERIALS
used and standard features of construction can be found in Chapter 05.00.00

COLOURING:
grey RAL 7004 standard aquaculture

CAPACITY:
the tanks volume depends on dimensions

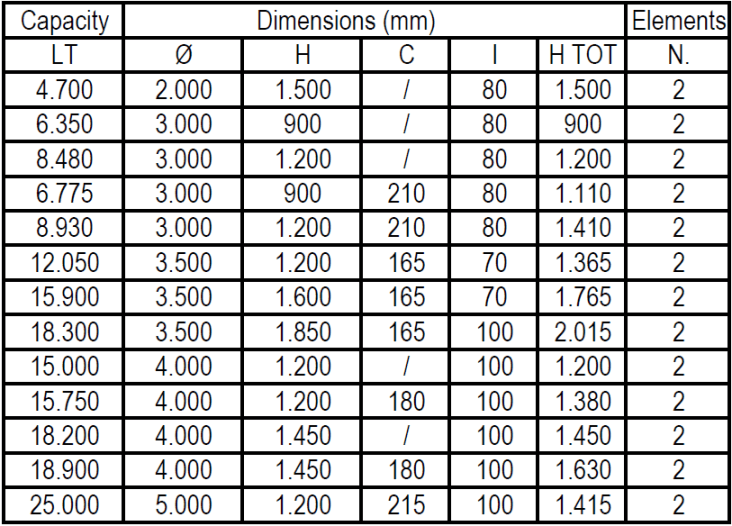

DIMENSIONS:
the dimensions above indicated are nominal and not binding ones

WELL WITH A PLACE FOR GRID:
type 500 T from Ø=3000  to Ø=3500,type 600 T Ø=5000

TYPE OF DISCHARGE:
otal outlet special D=110 hose from Ø=3000 to Ø=3500 D=140 Ø=5000

D 63 hose from Ø sup=1290 to Ø=2220

SUPPORTS:
supplied with standard materials and heights for alternative n. 2

STANDARD SUPPLIED ACCESSORIES:
stainless steel bolts, sealing compound,wind-stops, speciale hose.

alternative n. 2: stainless steel bolts, sealing compoundi, wind-stops, special hose D=110 o 140, r.c. platform

OPTIONS::
COLOURING DIFFERENT FROM STANDARD


SUPPORTS DIFFERENT FROM STANDARD


WELL ART. 05.23.01


GRID ART. 05.23.02


ASSEMBLED PVC CONNECTIONS ART. 05.23.03


TILTING WASTE PIPE SYSTEM ART. 05.23.04


TELESCOPIC DISCHARGE AND LEVEL SYSTEM ART. 05.23.05


FULL LEVEL DISCHARGE ART. 05.23.06


CYLINDER SURFACE FILTERS ART. 05.23.07


CENTRAL COLUMN FILTERS ART. 05.23.08


AIR DISTRIBUTION SYSTEM ART. 05.23.18


OXYGEN DISTRIBUTION SYSTEM ART. 05.23.19


INSTALLATION ART. 05.30
