Sugarpod – Activated carbon anti-odor filter for sewage and septic tanks

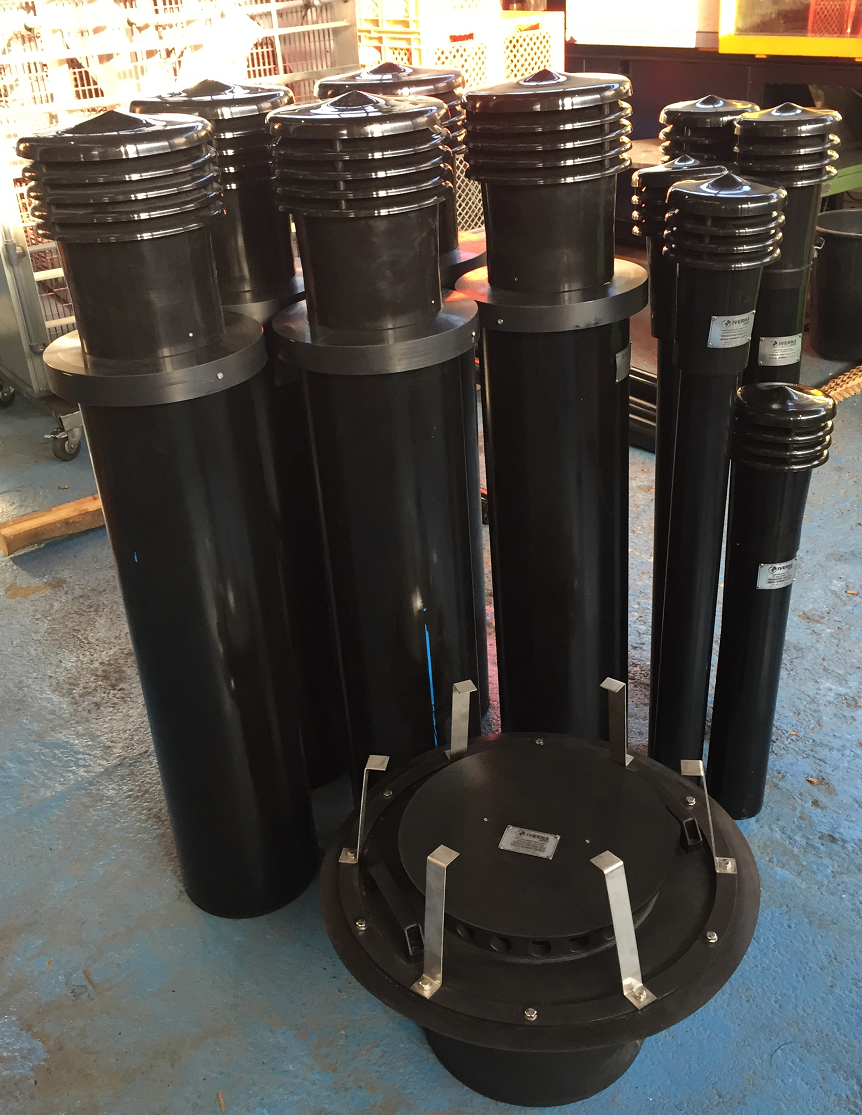

Characteristics and models
The main functionality of the anti-odor filter with activated carbon is to minimize the effect of some chemicals and other products coming out of any kind of well, sewage, inspection chamber or septic tank by neutralizing its bad odor.
Sugarpod is safe, effective and with an extremely simple installation and maintenance.
Sugarpod starts neutralizing bad odor right after being deployed.
The carbon base material is transformed into activated carbon by terminal decomposition and by using controlled atmosphere and temperature.
The resulting product features a great surface per volume unit, as well as a submicroscopic pore network where the absorption is done.

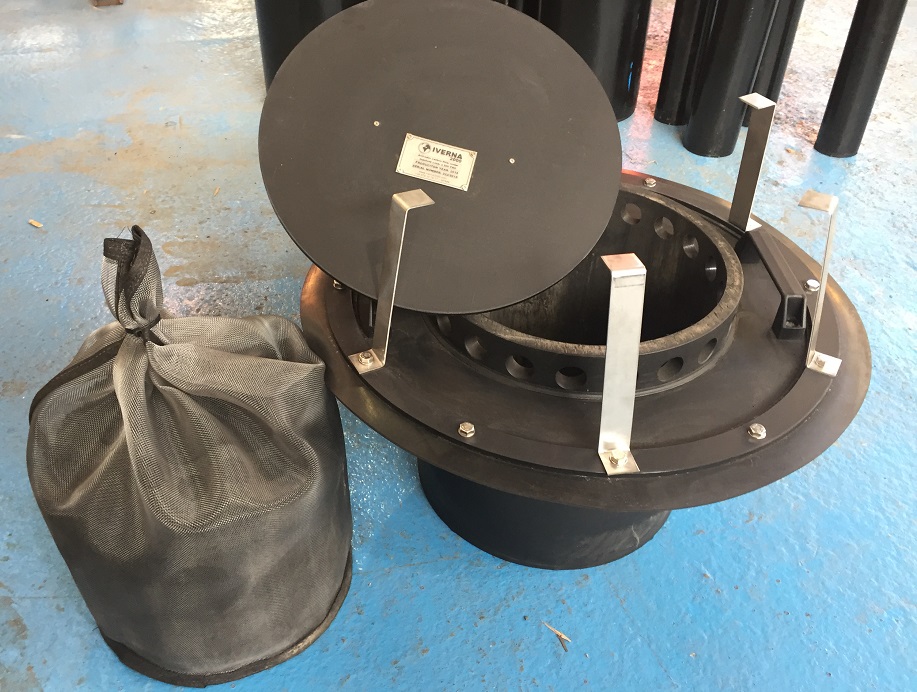

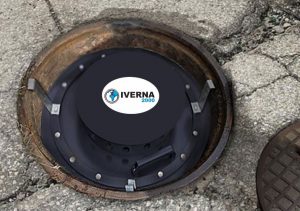

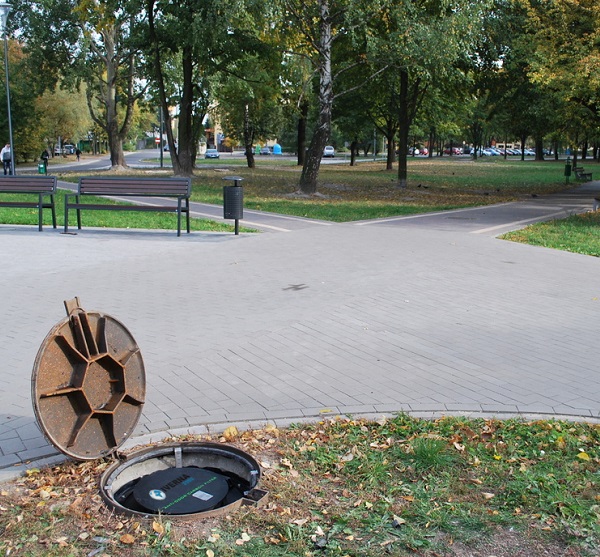

ACTIVATED CARBON FILTER - SEWAGE

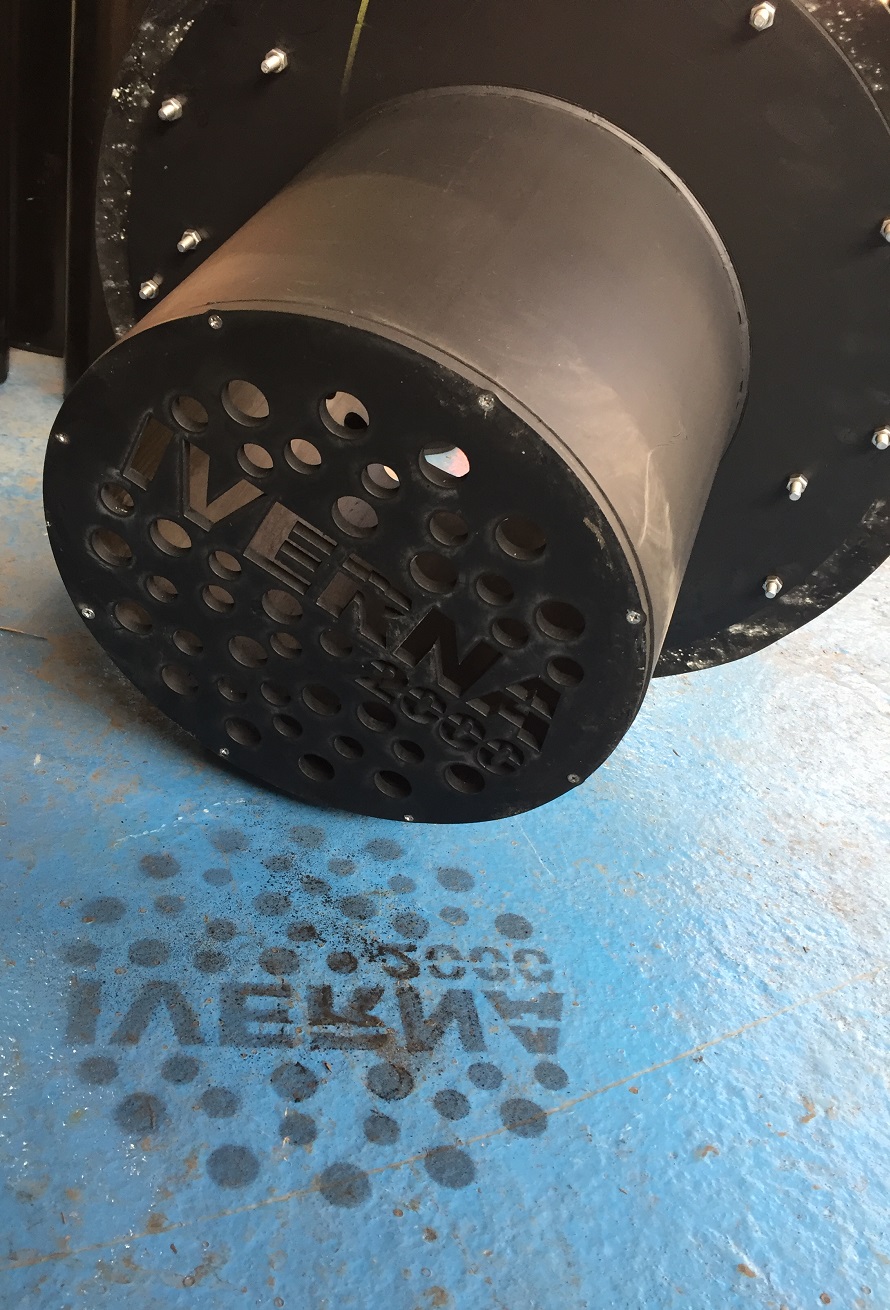

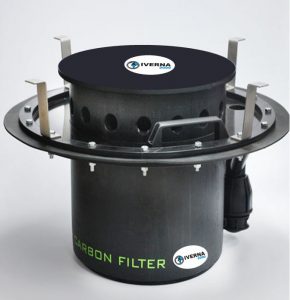

ACTIVATED CARBON FILTER - SEPTIC TANK
| Filters for round cover | 315 | 400 | 600 | 800 |
|---|---|---|---|---|
| Mounting hole diameter (mm) | 315 | 400 | 600 | 800 |
| Lenght of the filter chamber (mm) | 500 | 500 | 340 | 340 |
| Weight of the filter element (Kg) | 4,4 | 5,3 | 10,5 | 10,5 |
| Filters for square cover | K600 | K800 | K1000 |
|---|---|---|---|
| Mounting hole diameter (mm) | 600x600 | 800x800 | 1000x1000 |
| Lenght of the filter chamber (mm) | 340 | 340 | 340 |
| Weight of the filter element (Kg) | 10,5 | 10,5 | 13,3 |

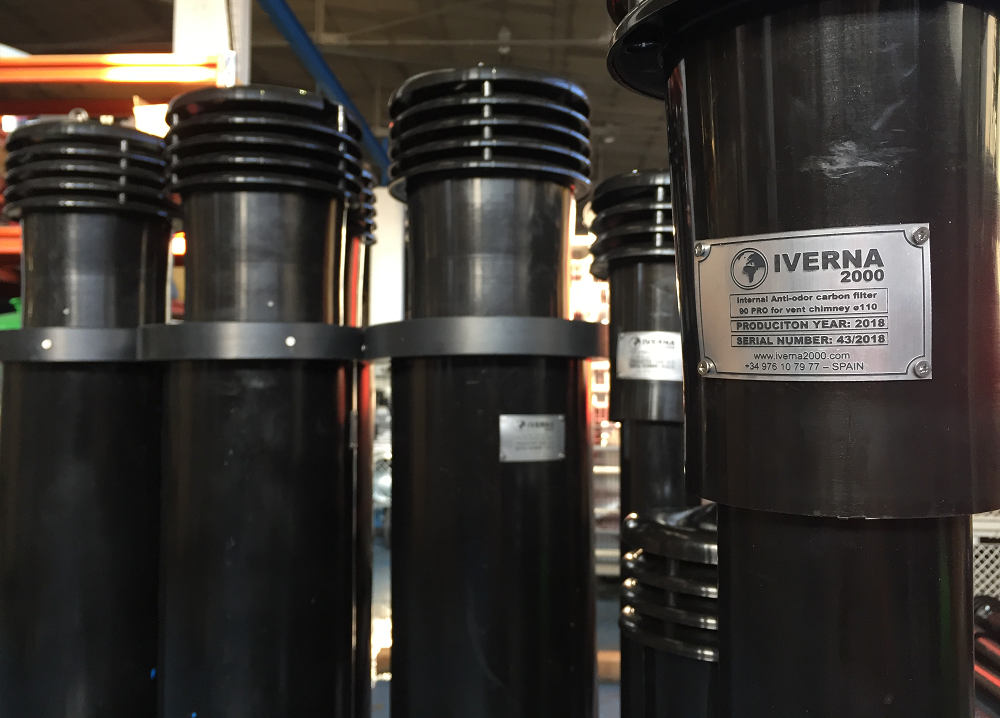

| Internal filters for sewage pumping stations | W90 | 110 | W140 | 160 |
|---|---|---|---|---|
| Filter diameter (mm) | 90 | 110 | 140 | 160 |
| Lenght of the filter chamber (mm) | 1000 | 1000 | 1000 | 1000 |
| Mounting hole diameter (mm) | 110 | 110 | 160 | 160 |
| Weight of the filter element (Kg) | 2,2 | 4,3 | 6,2 | 8,8 |
Installation

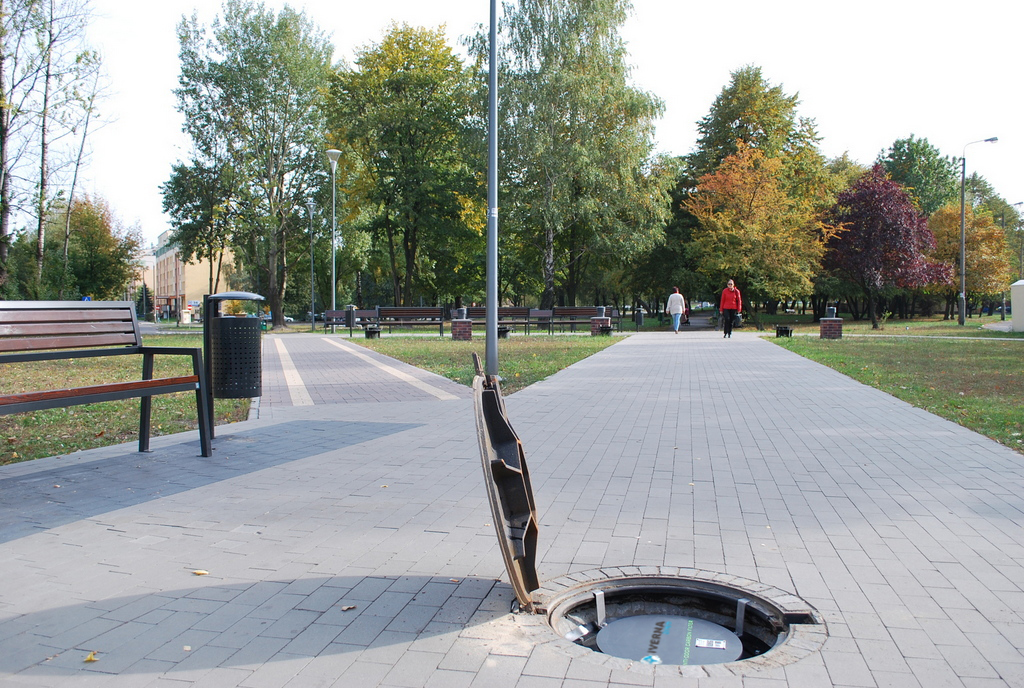

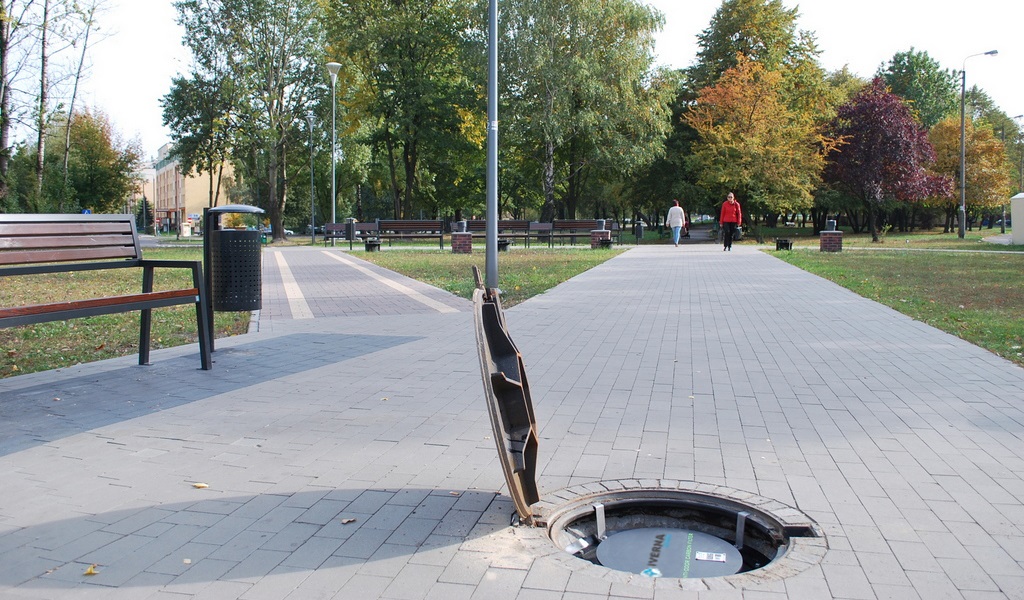

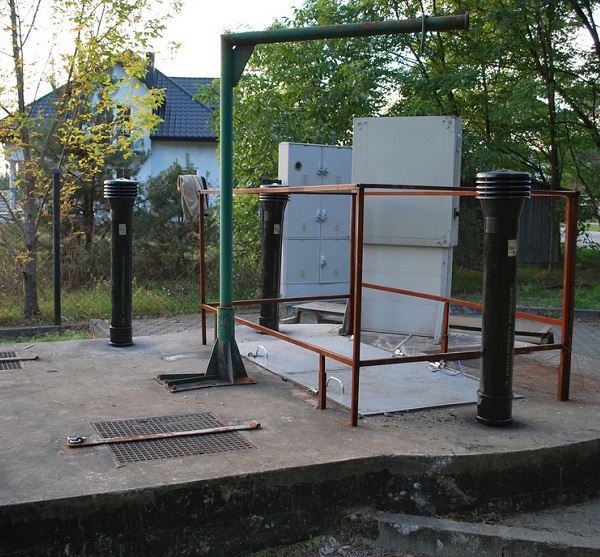

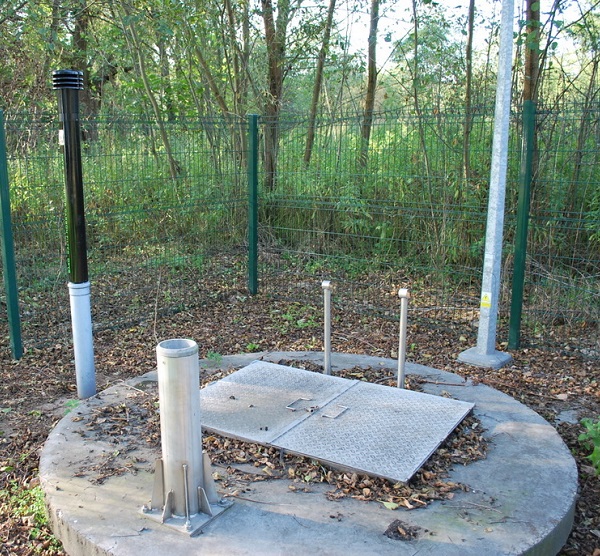

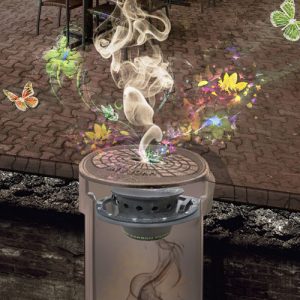

Installing Sugarpod in wells
Firstly, you must choose the model that best suits your specific needs considering the filter diameter, filter chamber length and the diameter of the hole where the device will be installed.
Dig or find a hole where you can install the device.

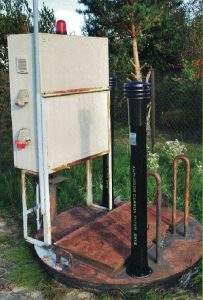

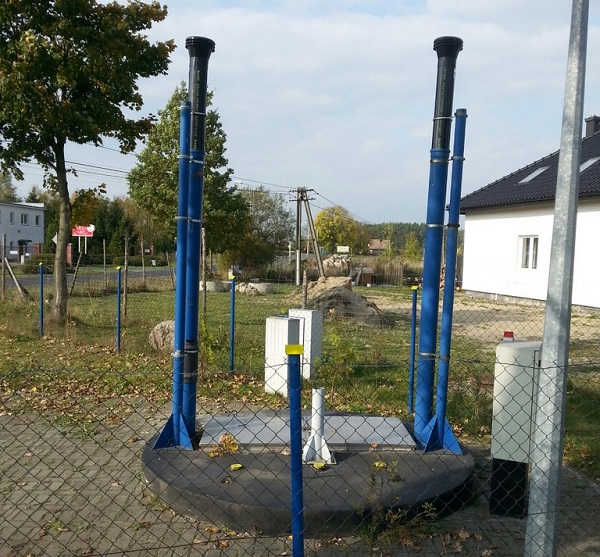

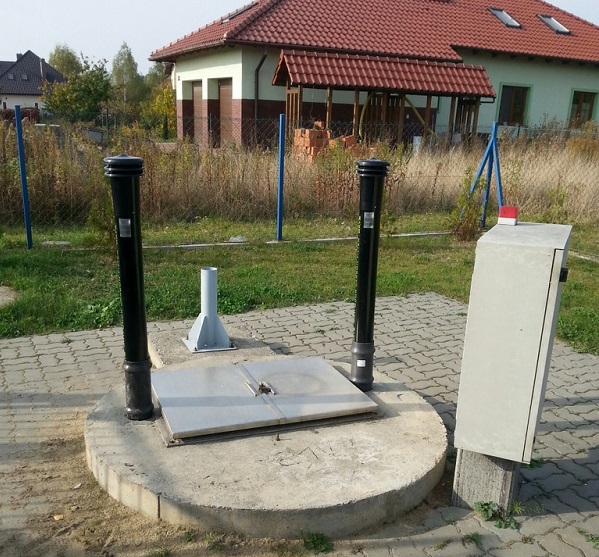

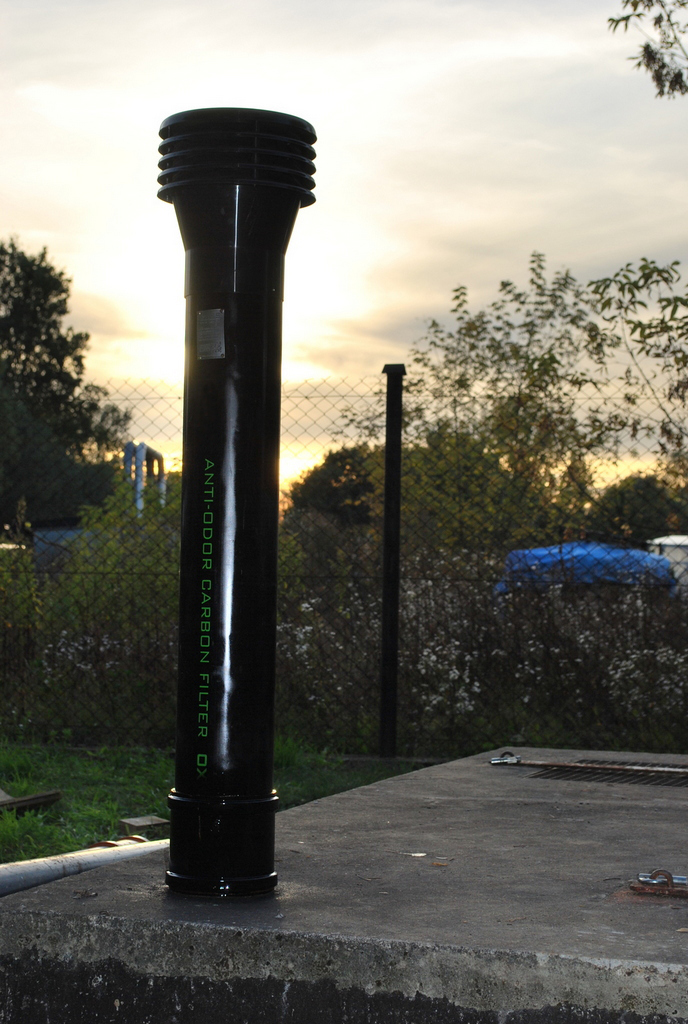

Fix the device to the ground. You must use specific materials depending on the chosen place (concrete, ground…).Installing chimney Sugarpod

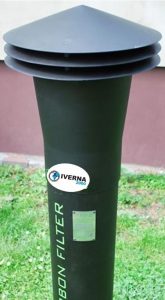

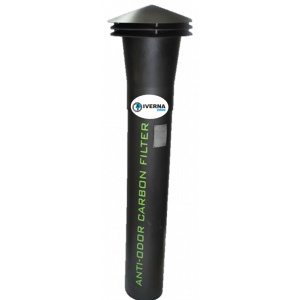

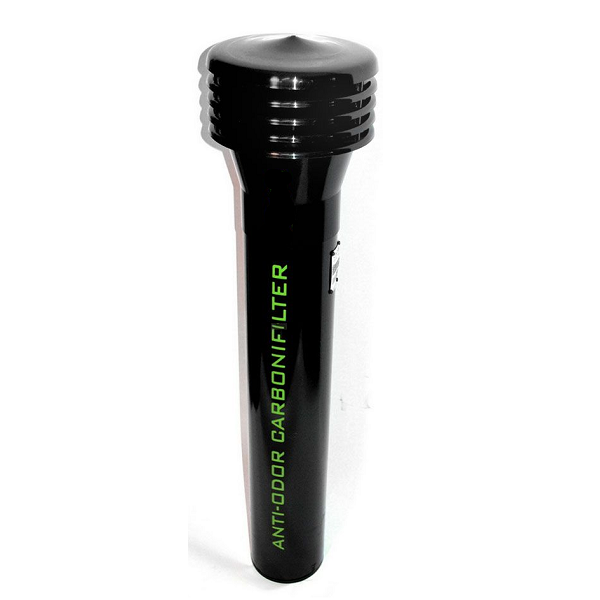

Firstly, you must choose the model that best suits your specific needs considering the filter diameter, filter chamber length and the diameter of the hole where the device will be installed.
Dig or find a hole where you can install the device.
Fix the device to the ground. You must use specific materials depending on the chosen place (concrete, ground…).Gallery
