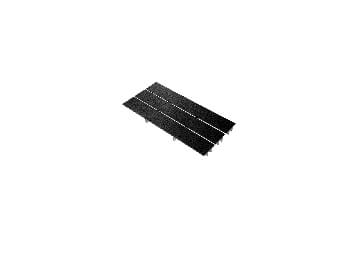

Compodeck

Technical Table
Mesh (mm)
mm 200x30 (200x60)
Height (mm)
mm 35
Bearing bar thickness (mm)
mm 8 upper part

mm 7 bottom part
Colour
Gray RAL 7004
Surface
Covered / With drainage system
Raw materials
Acrylic fire retardant polyester resin
Standard panels (mm)
mm 1000 x 2000
Weight kg/m2
29
Code: SCH 30(60)/35_AFR


Technical Table
Mesh (mm)
mm 200x30 (200x60)
Height (mm)
mm  35
Bearing bar thickness (mm)
mm 8 upper part

mm 7 bottom part
Colour
Natural black
Surface
Covered / With drainage system
Raw materials
Conductive fire retardant polyester resin
Standard panels (mm)
mm 1000 x 2000
Weight kg/m2
29
Code: SCH 30(60)/35_CFR


Technical Table
Mesh
mm 200x30 (200x60)
Height (mm)
mm  35
Bearing bar thickness (mm)
mm 8 upper part

mm 7 bottom part
Colour
Gray RAL 7004
Surface
Covered / With drainage system
Raw materials
Fire retardant polyester resin
Standard panels (mm)
mm 1000 x 2000
Weight kg/m2
29
Code: SCH 30(60)/35_IFR




Please contact us for the technical sheet and more information on the product
